General Screwdrivers Module Series
Torque range：0.03-200Nm
Single & multi spindle automatic screwdrivers completely automate the screw driving process along an manufacturing assembly line when mounted to third party robotic arms and positioning systems. From our automatic screwdriver which seamlessly integrates into low-payload robotic arm assemblies, to our high-torque, which is capable of an 200 Nm torque capacity, and everything in between, we engineer the most dynamic and versatile automated screw driving systems in the assembly line automation industry.
Product Advantages
L/D wide range of application
Simple operation & easy maintenance
Bits homemade, wear well
Reliable quality & stable performance

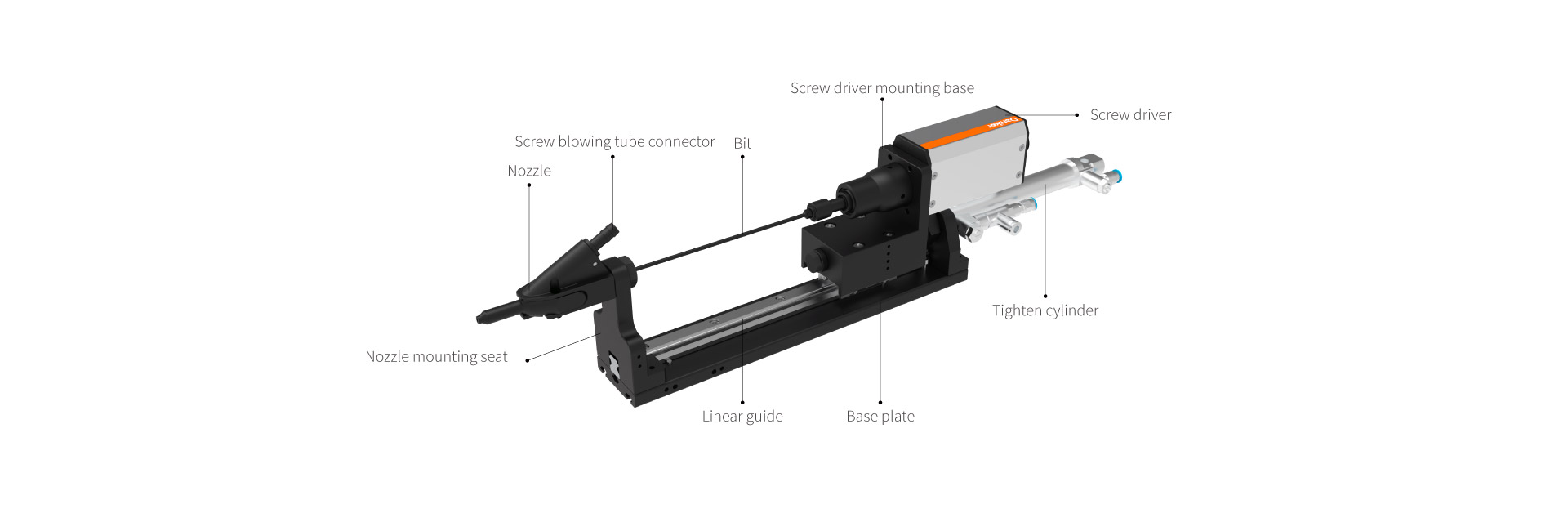

Product Structure

Product Parameters

Traditional blow screw module system parameters



Screw type Nozzle type Weight (excluding screw drivers and cables)/kg Maximum cap diameter/mm Torque range /Nm
Standard/Combination screw Normal 3.5~3.9 4~15 0.3~20
Swivel Arm 3~3.3
Hexagon head Normal 3.7~4.5
Swivel Arm  3~4.5

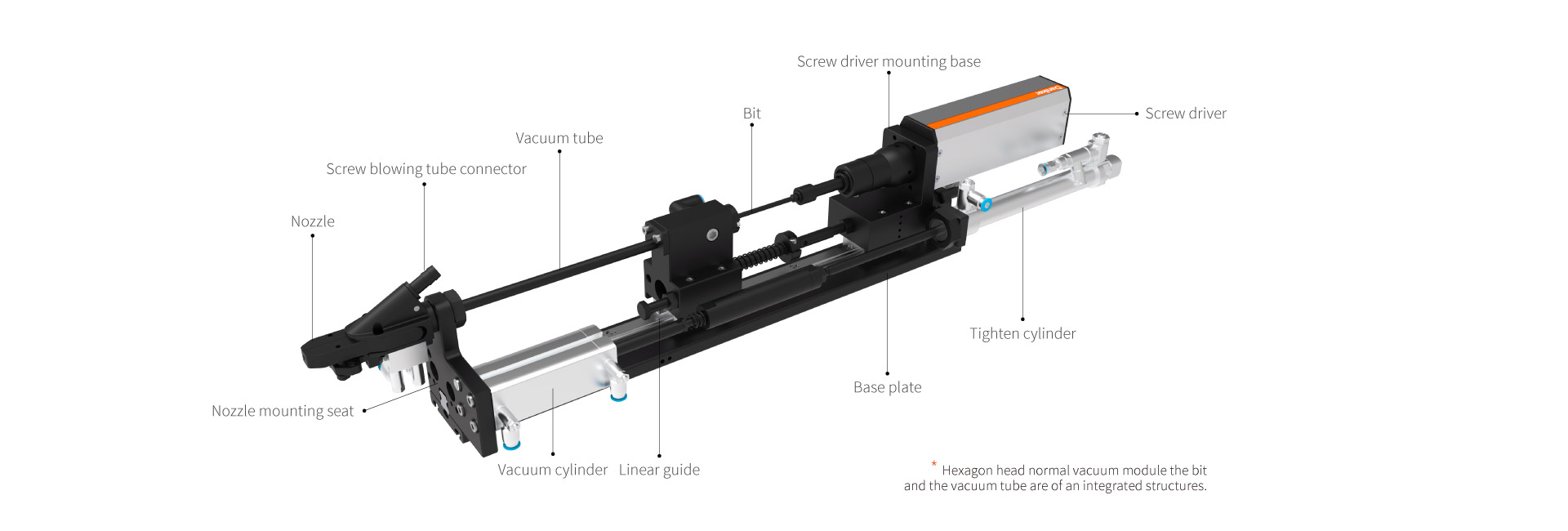

Normal Vacuum module system parameters



Screw type Nozzle type Weight (excluding screw drivers and cables)/kg Maximum cap diameter/mm Torque range /Nm
Standard/Combination screw Normal 5.8~6.7 4~15 0.3~20
Swivel Arm 6~6.9
Hexagon head Normal 6.9~7.1  11~15
Swivel Arm  6.8~7.2

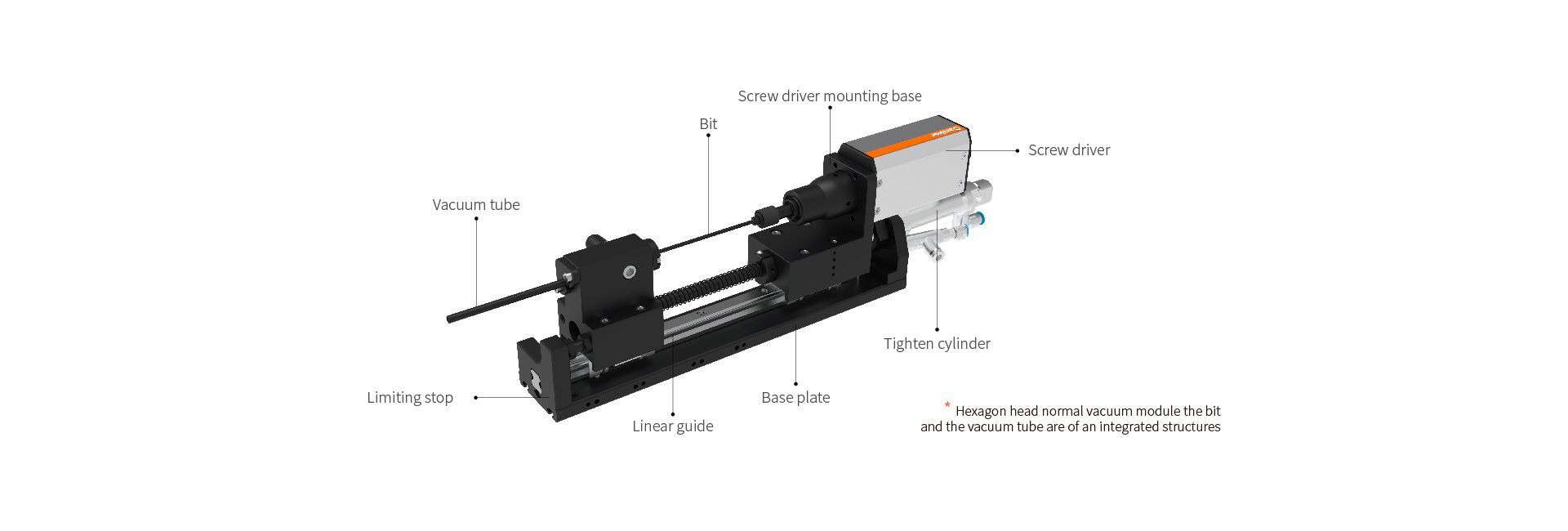

Conventional pick-up module system parameters



Screw type Nozzle type Weight (excluding screw drivers and cables)/kg Maximum cap diameter/mm Torque range /Nm
Standard/Combination screw None 3.9~4.3 4~15 0.3~20
Clamp nozzle 6.4~7.4 11~15
Hexagon head None 4.4~6.6 11~15
None 4.4~6.6 15~20 20~35



* The above is the reference value, and the actual test shall prevail.
